18. Remove bolt securing earth lead to engine.

19. Remove 4 bolts securing turbocharger heat shield. Remove heat shield and collect reinforcing plate

ENGINE - DIESEL REPAIRS 7 REVISED: 09/97

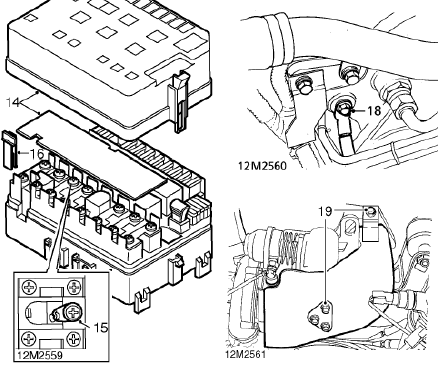

14. Remove fuse box cover and main fuse cover.

15. Remove Torx screw securing fuse box main battery feed lead terminal.

16. Remove lead access panel from fuse box and release lead from fuse box.

17. Remove battery positive lead terminal bolt and release fuse box main feed lead.


  20. Release 4 clips and disconnect fuel feed and return hoses.

CAUTION: Plug the connections.
