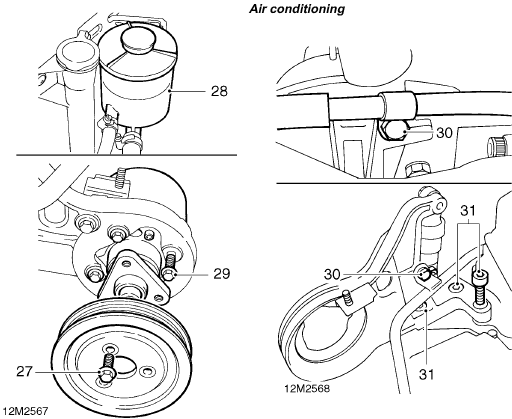

| 27. Remove 3 bolts
securing PAS pump pulley and remove pulley. 28. Release PAS
reservoir from its mounting bracket.
29. Remove 4 bolts securing PAS pump, release pump and tie aside.
|
30. Remove 2 bolts
securing vacuum pipe to PAS pump bracket and coolant pump. 31.
Remove 3 Allen bolts securing PAS pump bracket and remove bracket.
|
