ENGINE - DIESEL 6
REPAIRS REVISED: 09/97
| 8.

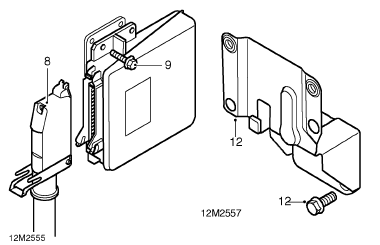

Disconnect multiplug from engine ECM. 9. Remove 3 bolts securing ECM and remove
|
12. Remove 3 bolts
securing air cleaner support bracket and remove bracket.
|

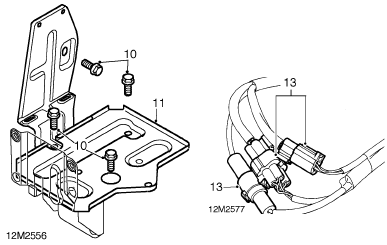

| ECM. 10. Remove 4 bolts securing battery tray. 11. Remove battery tray.
|
13. Disconnect 3 engine
harness multiplugs at LH side of engine bay.
|
