ENGINE - DIESEL

CYLINDER HEAD GASKETS
1. Remove rocker cover gasket. See this section.

2. Remove injectors. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

3. Remove coolant manifold. See COOLING SYSTEM - DIESEL, Repairs.

4. Remove exhaust and inlet manifolds. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

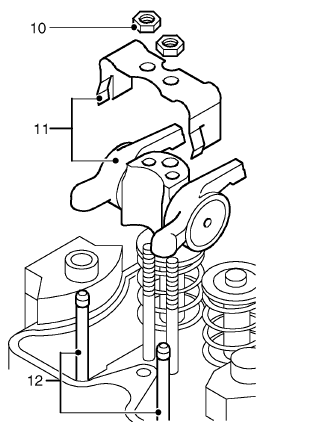

10. Remove 8 nuts securing rocker assemblies.

11. Remove rocker assemblies.

12. Remove push rods.

CAUTION: Keep rocker assemblies and push rods in their fitted order.


5. Disconnect 4 glow plug connectors.

6. Disconnect temperature gauge sensor lead.

     Next page

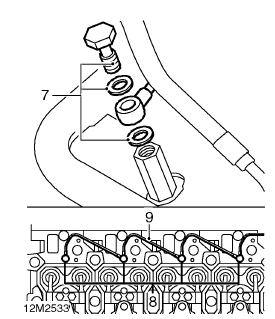

7. Remove rocker oil feed pipe hose union banjo bolt from cylinder block adapter, discard 2 sealing washers.

8. Remove 4 pipe union banjo bolts from cylinder heads, discard 8 sealing washers.

9. Remove pipe.
